TPA TECHNOLOGY
The Heart of Airdog Air purification
Airdogs patented TPA (Two-Pole Active) technology combines ionization and electrostatic technology to capture ultrafine particles down to 14.6 nanometers.
Unlike traditional filtration systems. TPA does more than trap pollutants-it neutralizes harmful contaminants, delivering cleaner, safer air.
Technical principle

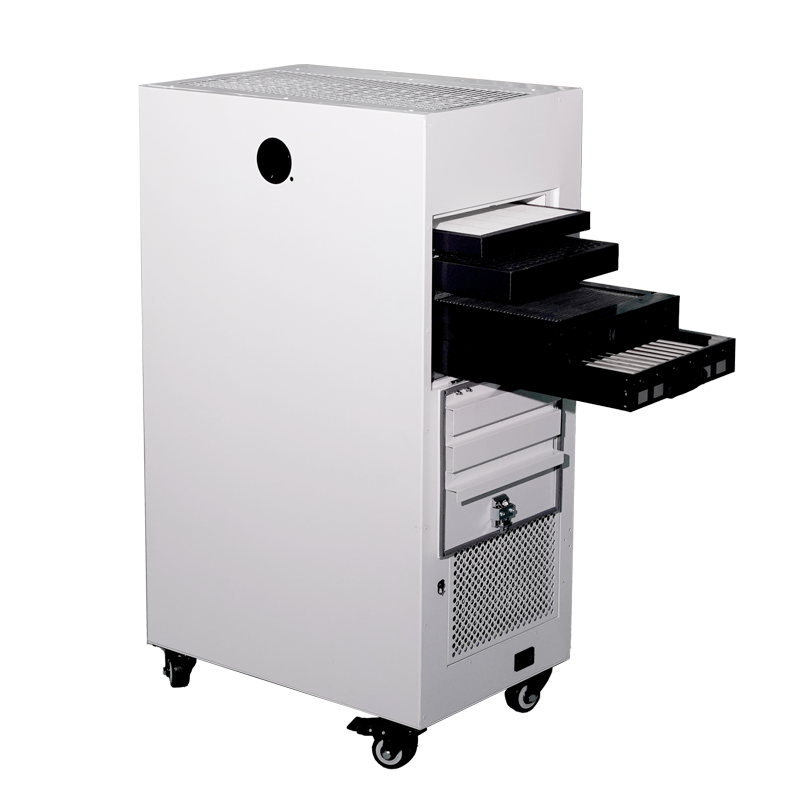

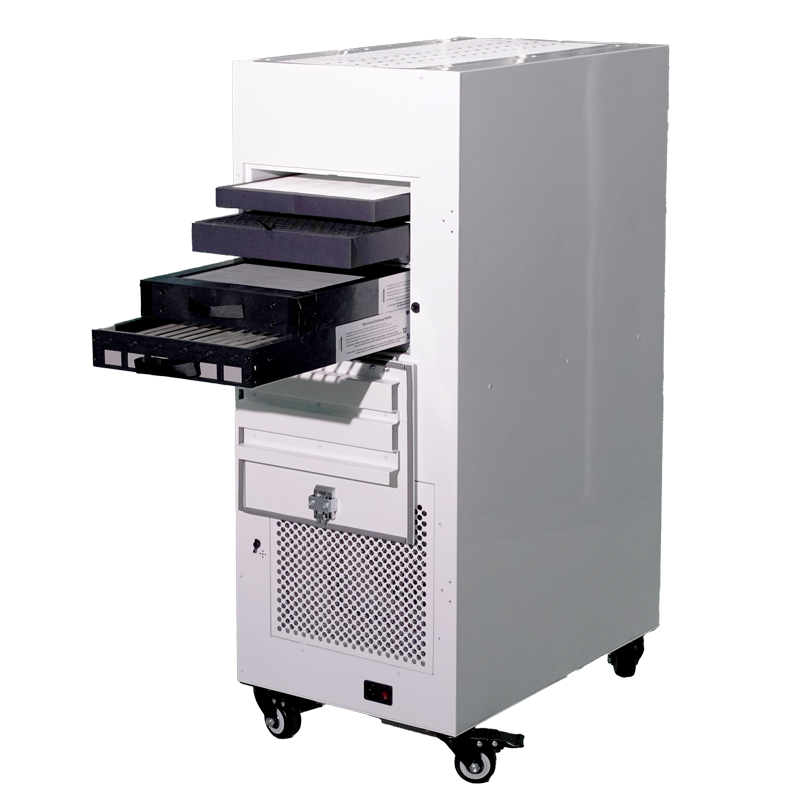

Step 1: Pre-filter Screen
Air flow from the bottom and into the Pre-filter screen to collect hair, pet dander, etc.

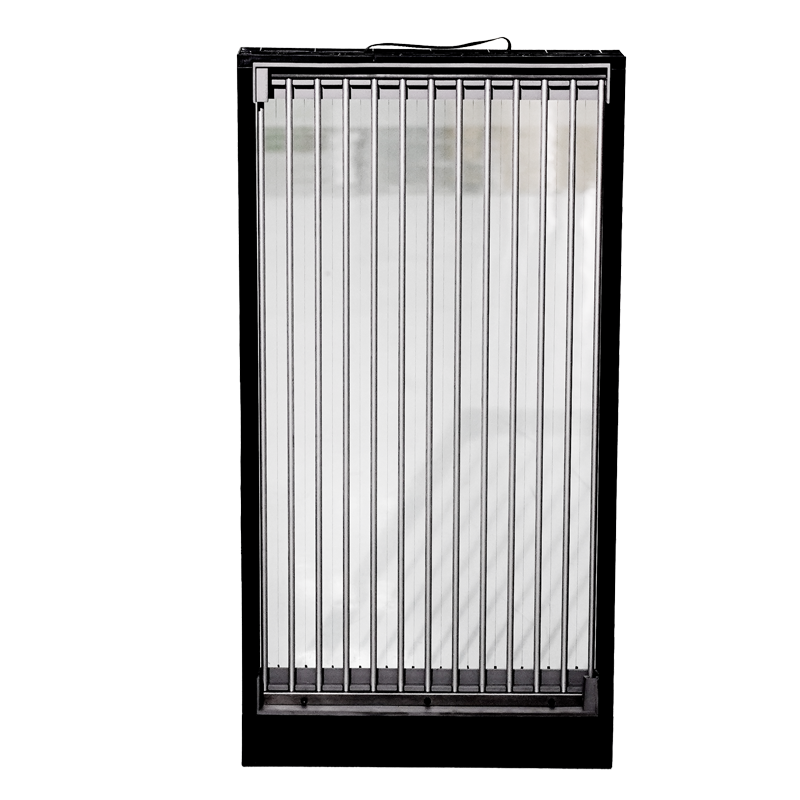

Step 2: Wire Frame
Creates an electrostatic field that captures and neutralizes harmful particles before they can enter the lungs.
Step 3: Ionic Field
Annihilates bacteria and germs charged particles are destroyed.

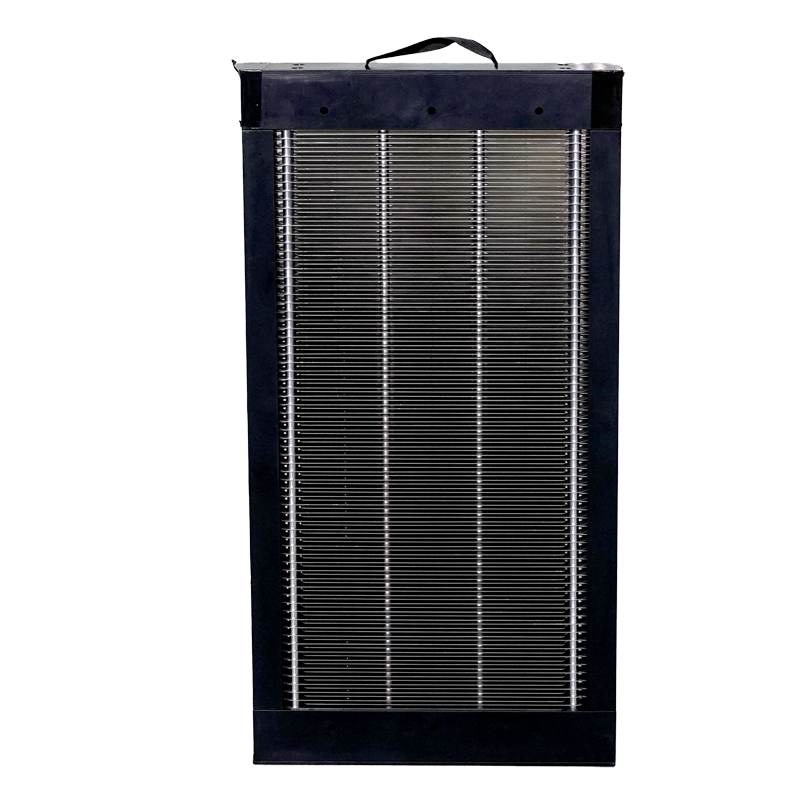

Step 4: Collecting plate
Charged particles stick to the collecting plates to remove dangerous toxins from the air.

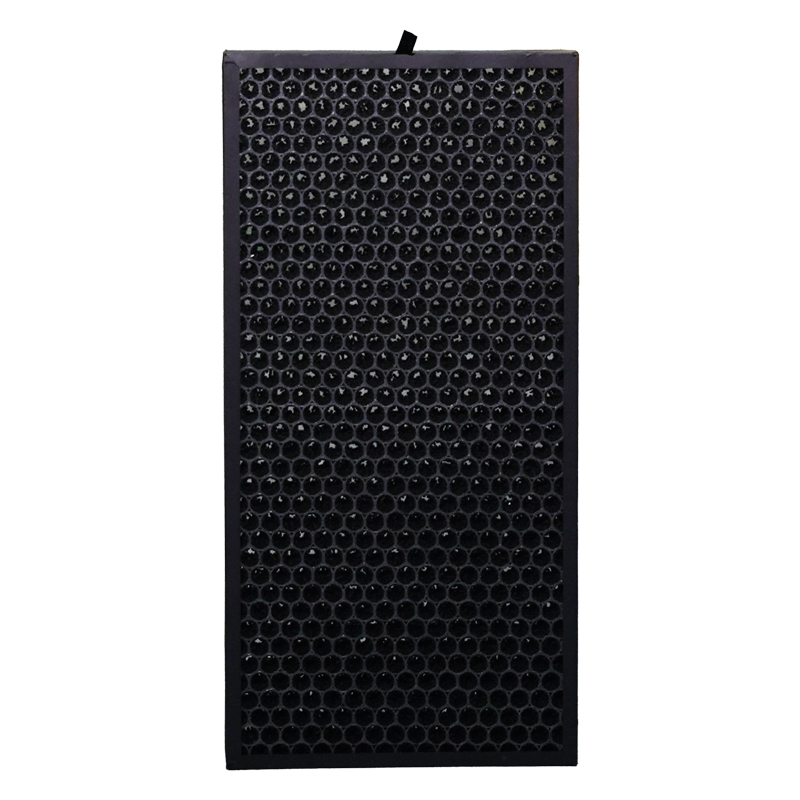

Step 5: Catalyst Filter
The final step in the purification process removes unpleasant odors keeping your air fresh and pure.
 |  |  |
Features:
Air Purification for High-critical Environments
Capture Particles Down to 14.6nm
Inactivates Viruses & Bacteria
No Filter Replacement Required
Eco-Friendly & Energy Saving
Consistent Erformance Over Time
Proclean features:
TPA Technology: Nanometric filtration+microorganism destruction, consistent long-term efficiency.
Industrial performance: up to 1500m3/h air flow. Built for 24/7 continuous operation.
Powerful but quiet: 790m3/h at only 40dBA, power and discretion. All in one.

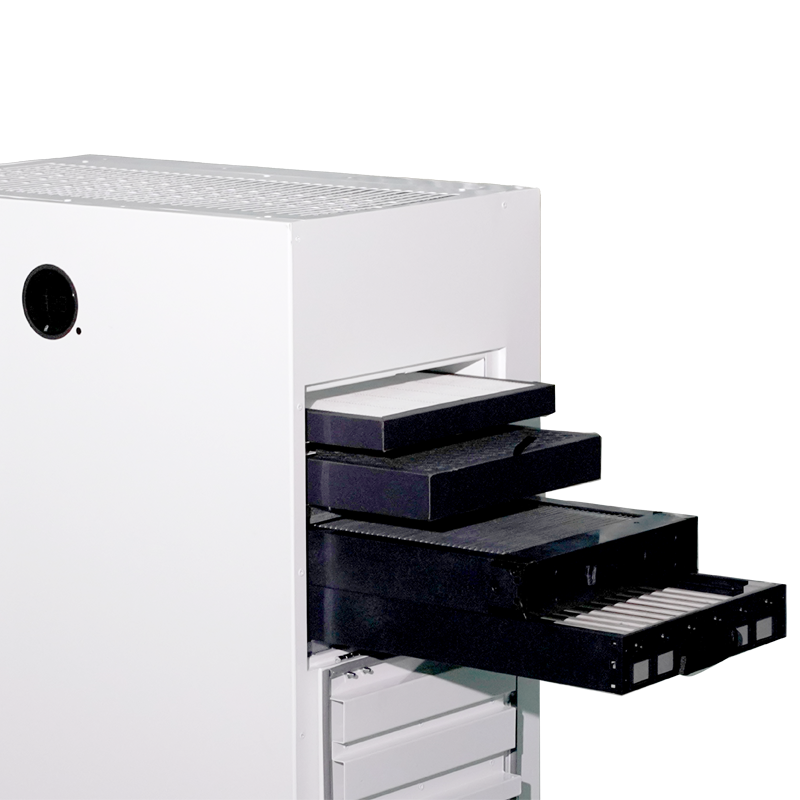

Low Maintenance: washable & reusable filters. No frequent replacements, lower operating costs.
Specification:
Airflow: 1500m3/h
One time filtration efficiency 92%-97%
Suitable Area: 105m2
Noise level: ≤63dB(A)
Rated voltage: 220v-240v 50/60Hz
Rated Power: 120w
Filter: wahsable TPA filter
Dimensions(H*L*W): 1.09*0.63*0.41m
Weight: 62kg

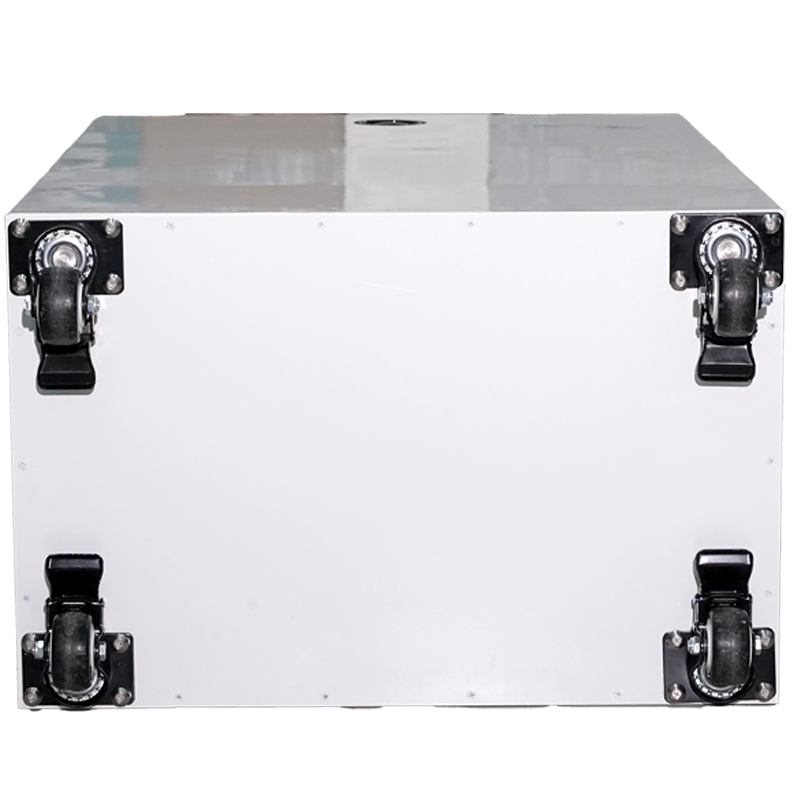

Mobility: movable with wheels
 |  |  |
Built for professional environments
Constructed entirely in stinless steel and powered by TPA electrostatic filtration.Pro Clean is engineered for industries where air quality equals safety. Productivity, and peace of mind.
Flexible installation:
Three ways to fit your space.

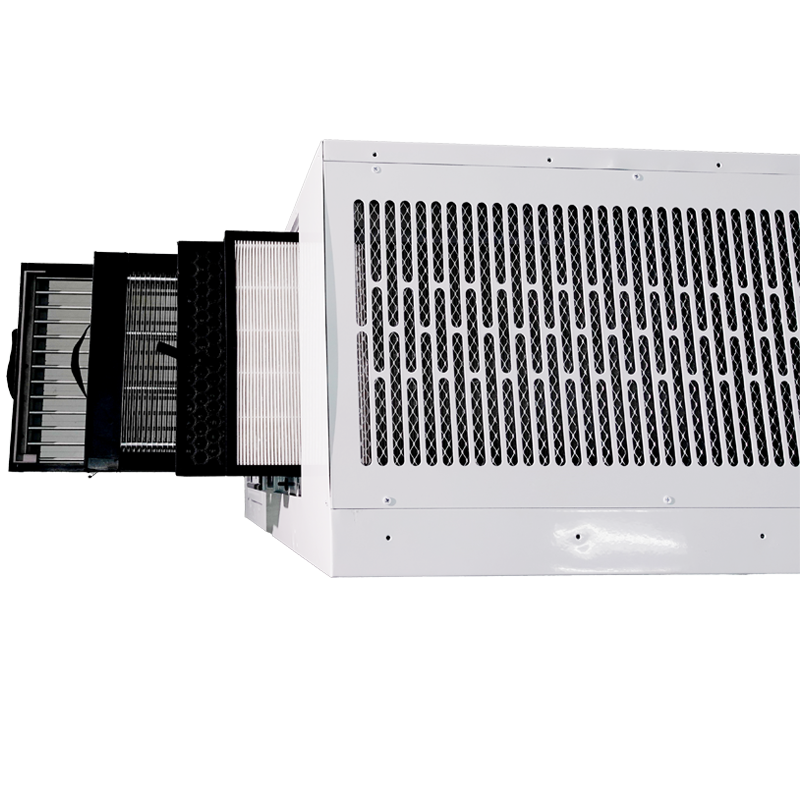

Ceiling-mounted : frees up workspace.
Wall-mounted: Protects the unit and optimizes airflow.
Mobile(with wheels): perfect for modular or temporary areas.
Why Airdog IEF Pro Stands out:
Performance comparison between Airdog TPA and conventional filtration systems
Function | TPA by Airdog | HEPA filtration | UVC | Ionization | Photocatalysis | Peroxide | Ozone |
Safe to be used in Presence of people | √ | √ | Only if adequately shielded | American study indicates it is dagerous | Potential emission of By-products | X | X |
Speed of 10 litres/sec/person(900m3/h for 25 people) | Up to approx 1500m3/h | Depends on the model | Depends on the model | Depends on the model | Depends on the model | N/A | N/A |
Double functionality: filtration of particulates & elimination of microorganisms | √ | X | X | X | X | X | X |
Can exterminate viruses and bacteria | √ | X | √ | √ Yes.but only if sufficient quantity | √ | √ Yes.but only if sufficient quantity | √ Yes.but only if sufficient quantity |
Designed for high-critical environment
Food industry: improved hygiene in production & packaging areas
Pharmaceutical: supports particle & microbial control
Hospitals: reduces airborne microbial load
School:comfort & protection in high-traffic spaces
Office: improves microclimate
Horeca:Odor management & improved perceived quality
